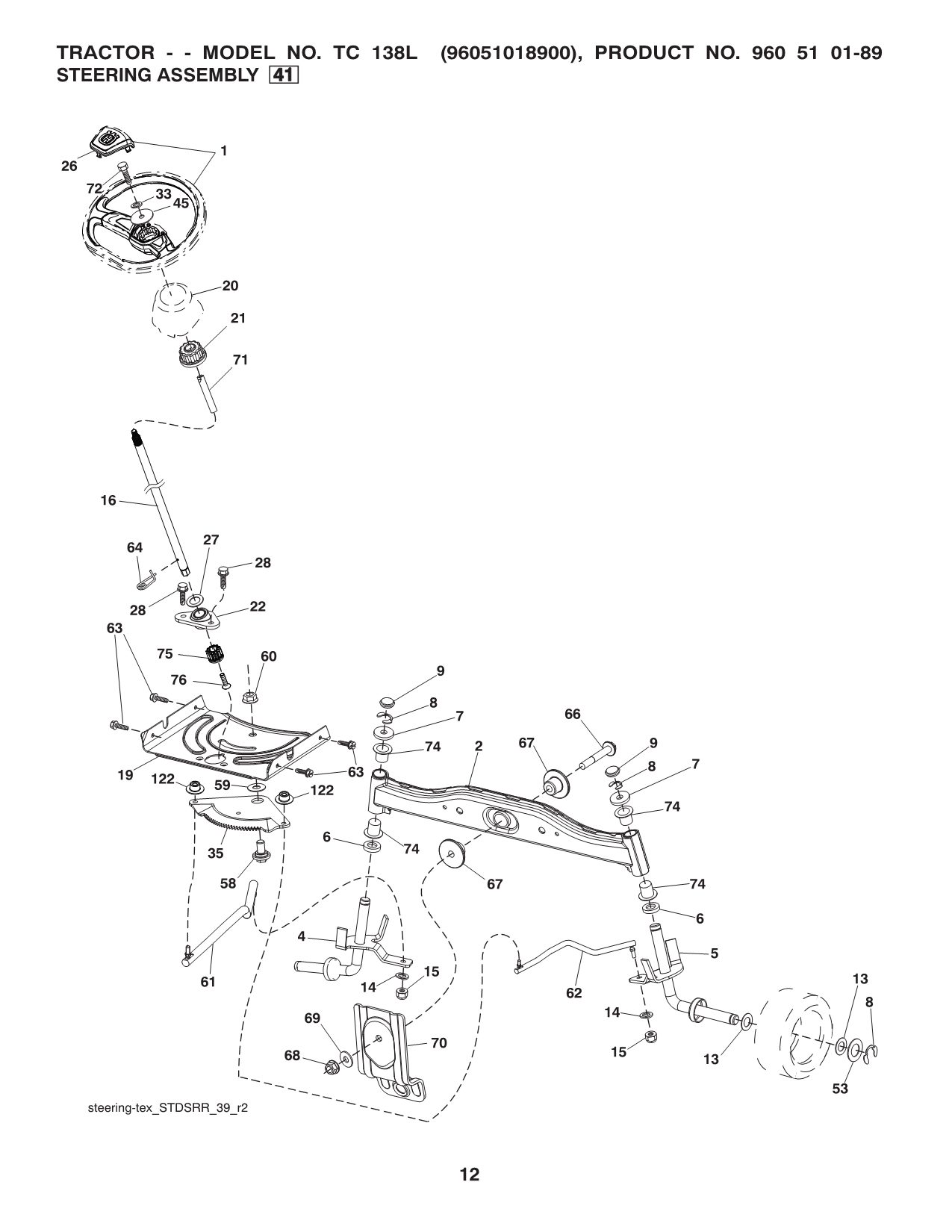

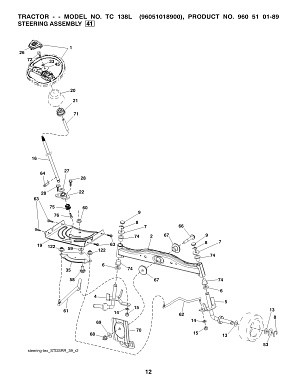

Деталировка рулевое управление STEERING ASSEMBLY Husqvarna TC 138L 96051018900
подробнее в описании
1 5978661-01 Wheel, Steering Kit
2 5324181-68 Axle Asm.
4 5324030-87 Spindle Asm., LH
5 5324030-88 Spindle Asm., RH
6 5320062-66 Washer Thrust .75 x 1.230
7 5321217-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 8120000-29 Ring, Klip #T5304-75
9 5321212-32 Cap, Spindle
13 5321217-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 5962387-01 Washer Spring Lock .381 ID x .680
15 8735406-00 Nut, Crown Lock 3/8-24 unf
16 5858692-02 Steering Shaft
19 5321947-29 Plate Steering
20 5324414-25 Boot, Steering
21 5321867-37 Adapter, Wheel Steering
22 5850298-02 Bearing
26 5949491-01 Insert, Wheel Steering
27 5969334-01 Washer Plain
28 8170006-12 Screw 3/8-16 x 3/4
33 5962388-01 Washer Lock 5/16 Sqr End Zn
35 5321947-32 Gear, Sector Plate
45 5960400-01 Washer 11/32 x 2-3/8" CLR.Zn
53 5321889-67 Washer Hardened .793 x 1.637 x .060
58 5321947-47 Bolt Shoulder Sector Pivot CFM
59 5321947-48 Washer Thrust Sector Steering
60 8739710-00 Nut Flange Lock 5/8-11
61 5970478-02 Linkage Asm Draglink LH Raw
62 5970479-02 Linkage Asm Draglink RH Raw
63 8170005-12 Screw 5/16-18 x 3/4
64 5321998-49 Retainer Clip Spring Steering
66 8710207-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 5321947-37 Bushing PM Front Axle
68 8739007-00 Nut Lock Flange 7/16-14 Gr. 5
69 5321991-62 Washer 1.5 x .505 x .118
70 5853388-01 Bracket Deck Susp Front
71 5321907-52 Shaft Extension Steering
72 5960397-01 Bolt, Hex Head, 5/16-18 unc x 4" Gr. 5
74 5320033-66 Bearing Col Strg Blk
75 5806837-01 Bolt, Hex, 5/16-18 unc x 4 Gr. 5
76 5806836-01 Screw Head Sock
122 5324449-62 Cap Gear Sector
# 5893160-01 Травосборник в сборе TC138M (Includes Key#’s 1, 20, 21, 26, 33,45,71, & 72). This kit also includes bagger parts 5835103-01 Индикатор наполнения травосборника трактора, 5866689-01 Гайка, 5833898-01 Пружина, 8747604-12 Болт
