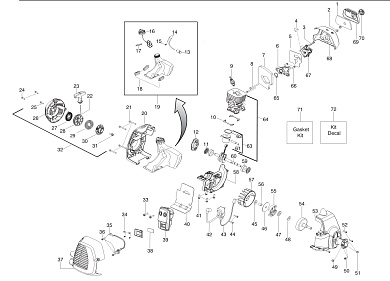

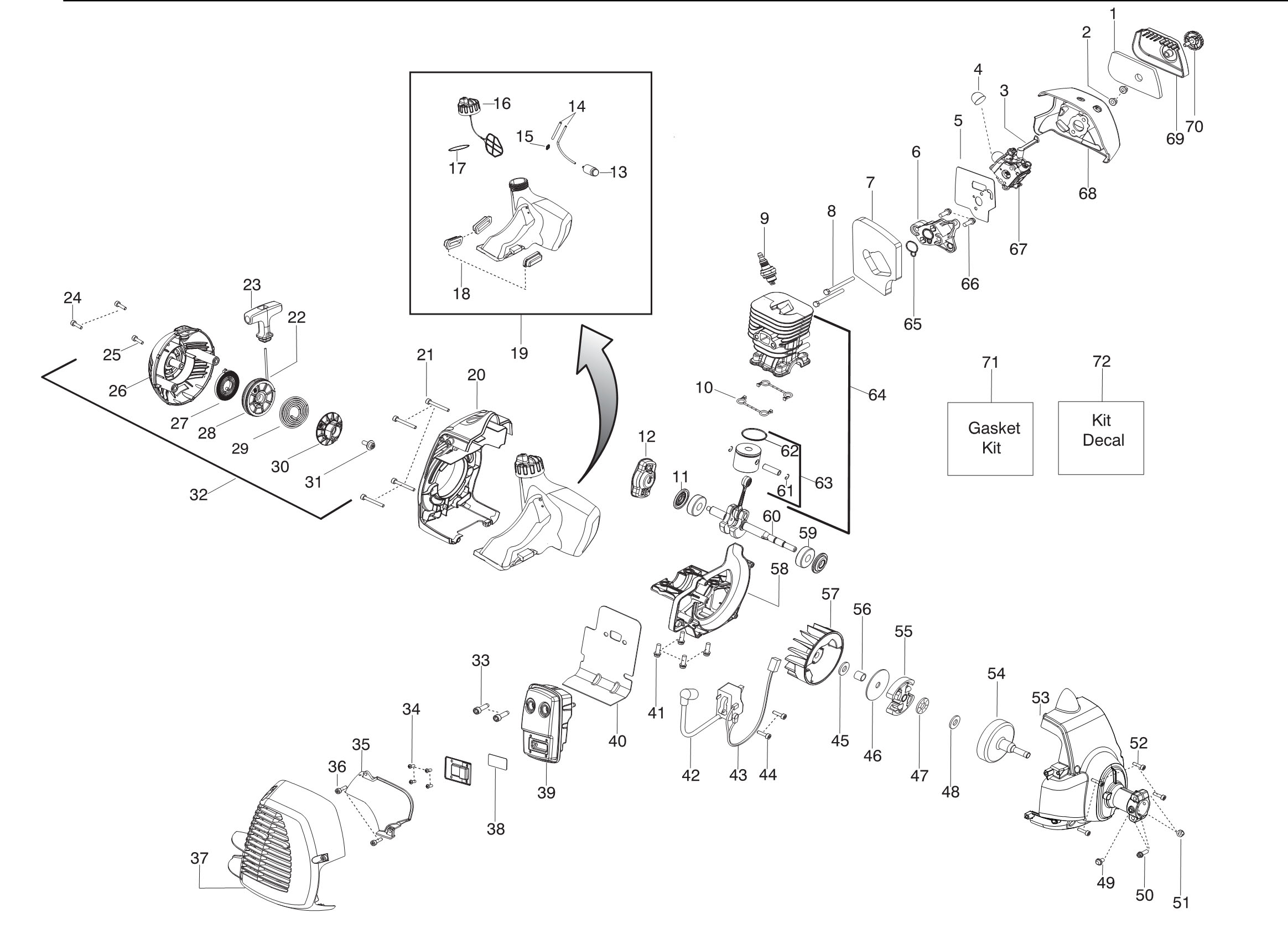

Запчасти двигатель ENGINE Husqvarna 128R
подробнее в Описании
1 5301502-53 Filter
2 5300161-01 Nut - Carb
3 5300578-44 Lever - Choke
4 5300587-09 Bulb - Purge
5 5450080-86 Kit-Carb
6 5300355-96 Adaptor - Carb.
7 5450080-84 Foam - Gasket (kit)
8 5300164-00 Bolt
9 9520302-01 Plug - Spark (RCJ-8Y)
10 5450080-84 Seal - Cylinder (kit)
11 5450080-84 Seal - Crankshaft (kit)
12 5038733-05 Assy - Starter Pawl
13 5300956-46 Assy - Fuel Filter
14 5300695-99 Kit - Fuel Line (Incl
15 5300238-77 Fitting - Fuel Line
16 5301503-50 Assy - Cap w/ret.(Incl
17 5450080-84 O-Ring - Fuel Cap (kit)
18 5300597-80 Isolator - Fuel Tank
19 5451808-70 Kit - Fuel Tank (Incl
20 5763821-01 Shroud - Rear (KIT)
21 5300164-48 Screw
22 5450080-79 Kit - Rope
23 5450432-05 Handle - Starter
24 5300164-26 Screw
25 5300164-49 Screw
26 5763821-01 Starter Housing KIT 2011-232N and higher
27 5450080-87 Kit - Spring
28 5450080-78 Starter Pulley KIT 2011-232N and higher
29 5440388-02 Spring - Driver
30 5440387-02 Pulley - Driver
31 5300164-68 Screw
32 5763683-01 Assy-Starter Hsg.(Incl
33 5300589-82 Bolt - Muffler
34 5300152-41 Screw
35 5301504-40 Shield - Heat
36 5300164-49 Screw
37 5762150-01 Kit - Muffler Guard (Incl
38 5450305-01 Kit - Spark (Incl
39 5740314-01 Kit - Muffler (Incl
40 5450080-84 Gasket-Paper Met.(kit)
41 5300158-97 Screw
42 5450467-01 Module
43 5300392-27 Assy - Leadwire
44 5300164-56 Screw
45 5300164-63 Washer
46 5300941-89 Washer - Clutch
47 5451734-01 Bearing - Thrust
48 5300164-20 Washer - Thrust
49 5300158-05 Screw 2010-73N and higher
50 5300157-74 Screw 2010-73N and higher
51 5300157-68 Nut
52 5300164-56 Screw
53 5452052-01 Assy - Fan Housing 2010-73N and higher
54 5301500-39 Assy - Clutch Drum
55 5300551-22 Assy - Clutch
56 5300578-52 Spacer
57 5300392-42 Flywheel
58 5451956-01 Crankcase - cast
59 5450134-01 Bearing
60 5451952-02 Crankshaft - Assy
61 5300151-62 Retainer - Piston Pin
62 5300192-83 Ring - Piston
63 5450818-14 Kit - Piston (Incl
64 5450080-83 Kit - Cyl./Piston (Incl
65 5450080-84 Seal - adaptor (kit)
66 5300158-97 Screw
67 5450818-47 Kit - Carb
68 5764590-01 Airbox
69 5300578-46 Cover - Air Box
70 5300597-96 Assy - Knob
71 5450080-84 Kit - Gasket (Incl
72 5450033-52 Kit - Decal
