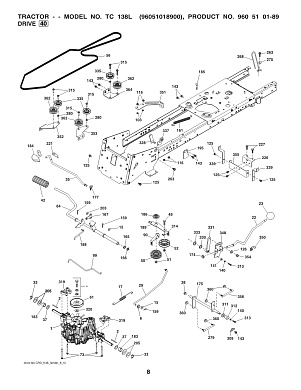

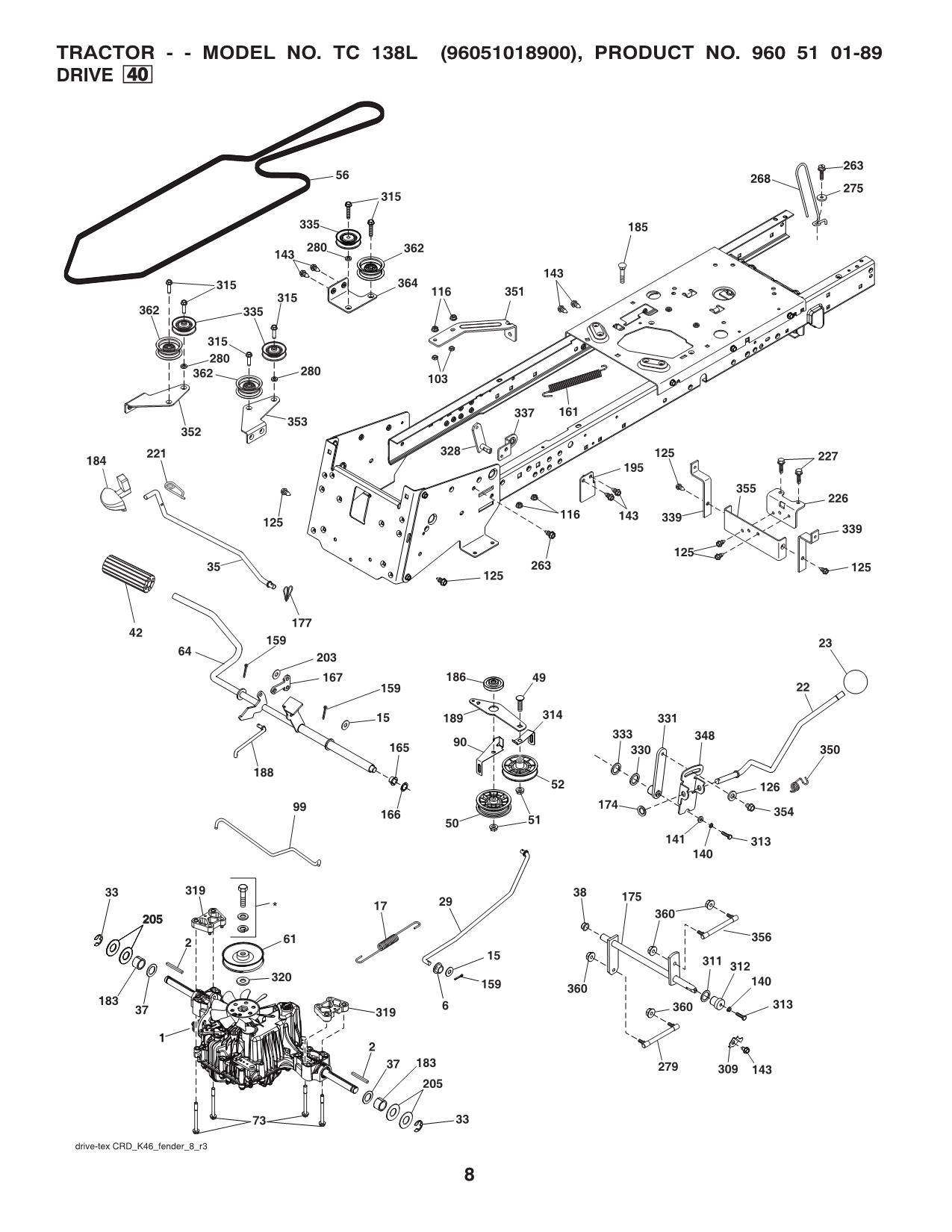

Деталировка привод DRIVE Husqvarna TC 138L 96051018900
подробнее в описании
1 5324483-55 не поставляется Transaxle, Tufftorq K46DC (448355)
2 5321235-83 Key Square
6 5321240-28 Bushing Snap
15 5965653-01 Washer 3/8 x 0.08 in ST CLR Zinc
17 5324362-27 Spring, Brake
22 5324432-46 Rod Shift
23 5321408-45 Knob
29 5324358-81 Rod, Brake
33 8120000-01 Ring E
35 5968748-01 Rod Control Park TXLT CLR Zinc
37 5321889-67 Washer Hardened
38 5321696-13 Nyliner Snap In
42 5320088-83 Cover, Foot Pedal
49 5961362-01 Bolt Cup Head 3/8-16 x 3/4
50 5321943-27 Idler Flat
51 8739006-00 замена на 5324091-49 Гайка-шайба
52 5321943-26 Idler V-Groove
56 5928551-01 V-Belt, Drive
61 5324377-88 Pulley Transaxle
64 5321962-00 Shaft Asm. Pedal Brake Control
73 8744905-60 Bolt Hex 5/16-18 x 3.75
90 5324436-05 Keeper Belt Clutching
99 5324439-47 Rod Spring Bypass
103 5964363-01 Nut Hex 5/16-18 x 0.577" Gr. 5 Zn
116 5961357-01 Nut Lock PRVL Torq 5/16-18 x .68
125 8170005-12 Screw 5/16-18 x 3/4
126 5962188-01 Washer 11/32 x 1 x 1/8
140 5960298-01 Spring Lock Washer Square Ends
141 5960398-01 Washer 9/32 x 3/4 x 10 Ga.
143 5960307-01 Screw Hexagon 5/16-18 x 1/2
159 5960295-01 Pin Cotter 1/8 Dia. x 3/4
161 5321057-09 Spring, Return, Clutch
165 5321962-12 Nyliner
166 5324291-64 Nut Push .625
167 5324052-57 Latch Brake Parking
174 5321972-89 Nut Push
175 5324418-23 Shaft Asm Shift
177 5872253-01 Pin, Cotter, Locking, Bowtie, 1 In.
183 5321370-57 Spacer Axle
184 5324114-84 Handle Park Brk.
185 8721106-22 Bolt 3/8-16 x 2-3/4
186 5321943-21 Spacer Retainer
188 5822170-01 Link Clutch Ground Drive
189 5324336-11 Bellcrank Ground Drive
195 5804569-01 Bracket Rod Brake
203 5962041-01 Washer 11/32 x 11/16 x 14
205 5321217-48 Washer 25/32 x 1-5/8 x 16 Ga.
221 5324031-87 Retainer Spring
226 5324015-64 Bracket Mount Torque
227 5961359-01 Bolt Hex 5/16-18 x 3/4 CLR.Zinc
263 8170006-12 Screw Thdr 3/8-16 x 3/4
268 5968878-01 Guard Muffler B&S OHV
275 5961354-01 Washer Plain 13/32 x 1 CLR Zinc
279 5938984-01 Link & Stud-Link.Subasm
280 5960399-01 Washer Plain 11/32 x 5/8 CLR
309 5321655-81 Plate Fstnr. Cross
311 5321698-45 Washer Nylon
312 5321656-14 Hub Tapered
313 5960407-01 Bolt Hex.1/4-20 x 1
314 5324447-13 Keeper Belt
315 8175805-20 Screw Thdrol 5/16-18 x 1.25
319 5324367-94 Spacer Transaxle
320 5321876-90 Washer Spacer
328 5324357-58 Shaft Shift Front
330 5321695-93 Washer Nyliner
331 5324436-06 Hub Shift
333 5321708-68 Washer Spring Wave
335 5321995-34 Idler V Pulley Grnd. Dr.
337 5324359-37 Bracket Support Shift
339 5324368-67 Strap Torque
348 5324436-07 Arm Clevis Rod
350 5324450-20 Spring Torsion
351 5324369-98 Bracket Deck Sway
352 5324358-19 Bracket Idler
353 5324365-77 Bracket Idler RH
354 5940941-01 Bolt, Hex, 5/16-18 x 5/8
355 5324356-69 Bracket
356 5938984-03 Link Shift Cross Shaft
360 5324447-14 Nut 5/16-24
362 5324368-12 Idler Flat
364 5324430-32 Bracket Idler
