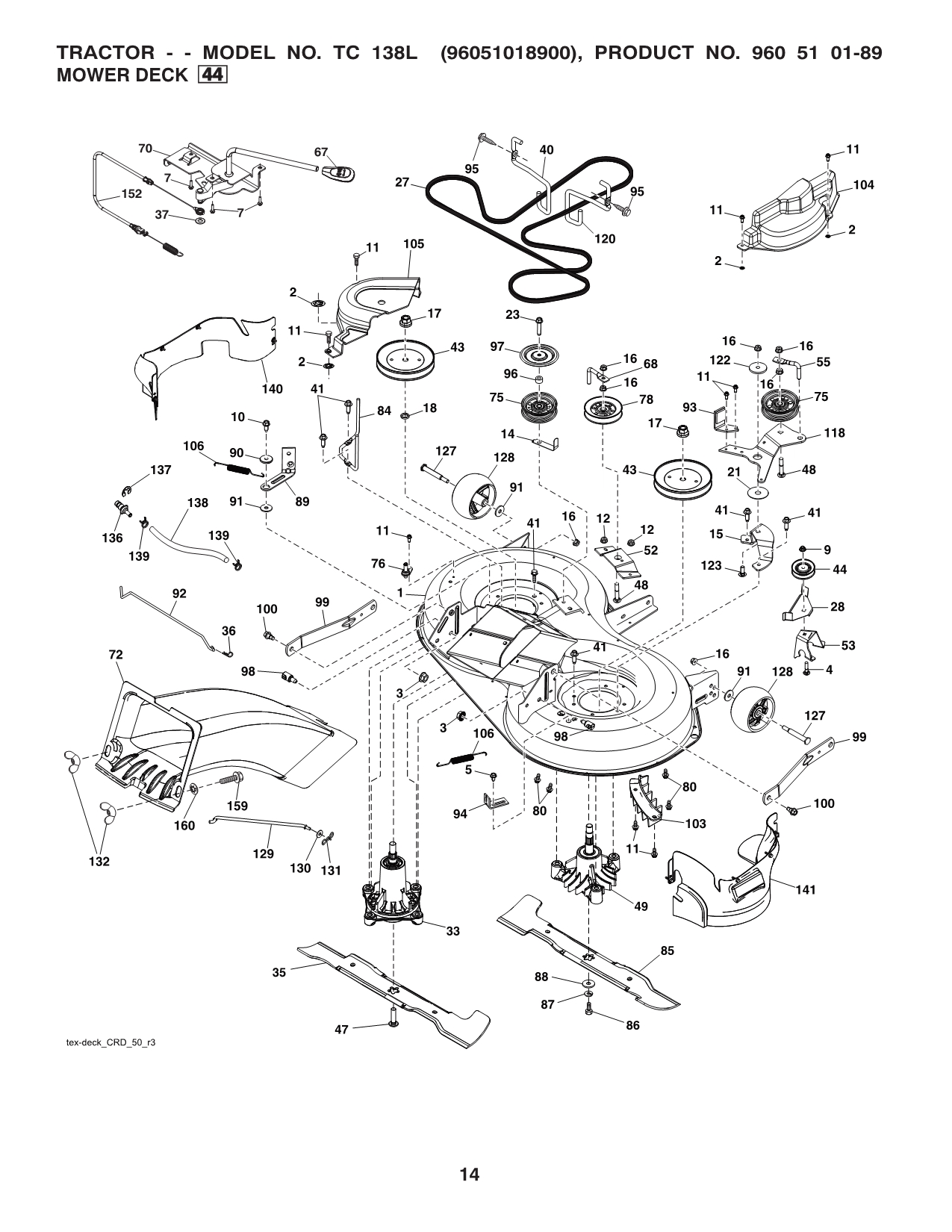

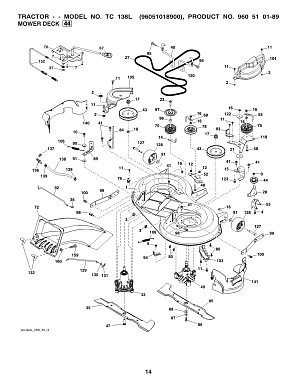

Деталировка дека косильная MOWER DECK Husqvarna TC 138L 96051018900

Артикул: -
(0)
подробнее в описании
Не указана цена за 1 шт
Нет в наличии
Способы оплаты

18 5321876-90 Washer Spacer Mandrel

21 5321785-15 Washer Flat Hardened

23 5965640-03 Bolt Hex 3/8-16 x 1.75 CLR Zinc

27 5971222-01 Belt 97 Manual замена на 5993653-01 Ремень привода деки TC238, TC138M

28 5928556-02 Keeper 97 CRD Angled Indler

33 5878197-01 Kit, Mandrel, Non Grease, Tall (includes mandrel and bolts)

35 5324279-84 Blade

36 5320044-97 Retainer Spring 1" Zinc/CAD

37 5965653-01 Washer 3/8 x 0.08 in. ST CLR ZN

40 5321972-58 Keeper Belt Engine LH

41 5849539-01 Bolt Hex WSHRHD .313-1/8 x 1.19

43 5321974-73 Pulley Mandrel

44 5321995-34 Pulley V-Idler GRND DR Plated

47 5843093-01 Screw LH Blade 7/16 x 1

48 5961363-01 Bolt, Cup, Head 3/8-16 x 2

49 5321655-79 Mandrel Asm., CRD, LH, Threads, SVC (includes bearing, housing, shaft, felt washer, nut, bolt, and washers.)

52 5992107-03 Bracket 97 CRD Center, Idler

53 5950981-03 Bracket V-Idler Bolt Angled

55 5989692-01 Clutching, Arm, Keeper, 97CRD

67 5324030-12 Handle Clutch Cable

68 5989038-02 Keeper, Belt

70 5324012-46 Clutch Asm Manual

72 5820356-01 Chute Upper

75 5970250-01 Pulley Idler Flat CLR ZN

76 5324396-40 Washout Port

78 5321739-02 Pulley Idler V-Gr. Plated 4.25

80 5959016-01 Bolt.Cup 5/16-18 x 3/4.CLR.Zinc

84 5896761-02 Keeper Belt Mandrel

85 5324279-85 Blade

86 5321817-13 Bolt 3/8-24 x 1.50

87 5962387-01 Washer Spring Lock 381ID x .680

88 5321402-96 Washer Hard Blade

89 5324381-24 Arm Brake

90 5321990-92 Space Retainer

91 5961349-01 Washer Plain 3/8 x 7/8

92 5928557-01 Rod Brake 97 CRD Link

93 5928549-02 Arm Brake

94 5321972-50 Bracket Clutch Cable

95 8170006-12 Screw Hexwsh 3/8-16 x 3/4

96 5324002-71 Spacer

97 5321820-61 Sheild Idler Mower

98 5938240-01 StudW/"D" Anti-Rotation

99 5321951-86 Arm Suspension

100 5321965-39 Bolt Shoulder

103 5324369-92 Guard Front Vent

104 5928481-01 Mandrel Cover RH

105 5324387-44 Mandrel Cover LH

106 5321932-16 Spring Brake Return

118 5992363-02 Arm Clutching

120 5321972-59 Keerper Belt Engine RH

122 5321657-23 Spacer Retainer Mower

123 5969875-01 Bolt 3/8x 1-1/4" Gr. 5 CLR ZN

127 5964344-04 Bolt Shoulder 3/8-16 x 3-5/8"

128 5895273-01 Wheel Gauge Rally

129 5324048-51 Rod Anti Sway

130 5961332-01 Washer 3/32 x 13/16 x 12 Ga.

131 5321942-08 Pin Cotter 5/16 Bow Tie Lock

132 5321788-99 Knob Handle

136 5324396-39 Washout Port Hookup

137 8120000-29 Ring Clip

138 5324407-43 Hose 3/8 Long 12"

139 5968674-01 Clamp Hose 3/8 Clear Zinc

140 5015794-01 Guard Asm LH

141 5015793-02 Gaurd Asm RH

152 5324404-88 Cable Clutch Manual w/Spring

159 8721406-14 Bolt 3/8-16 unc x 1-3/4

160 5321689-37 Nut Push
